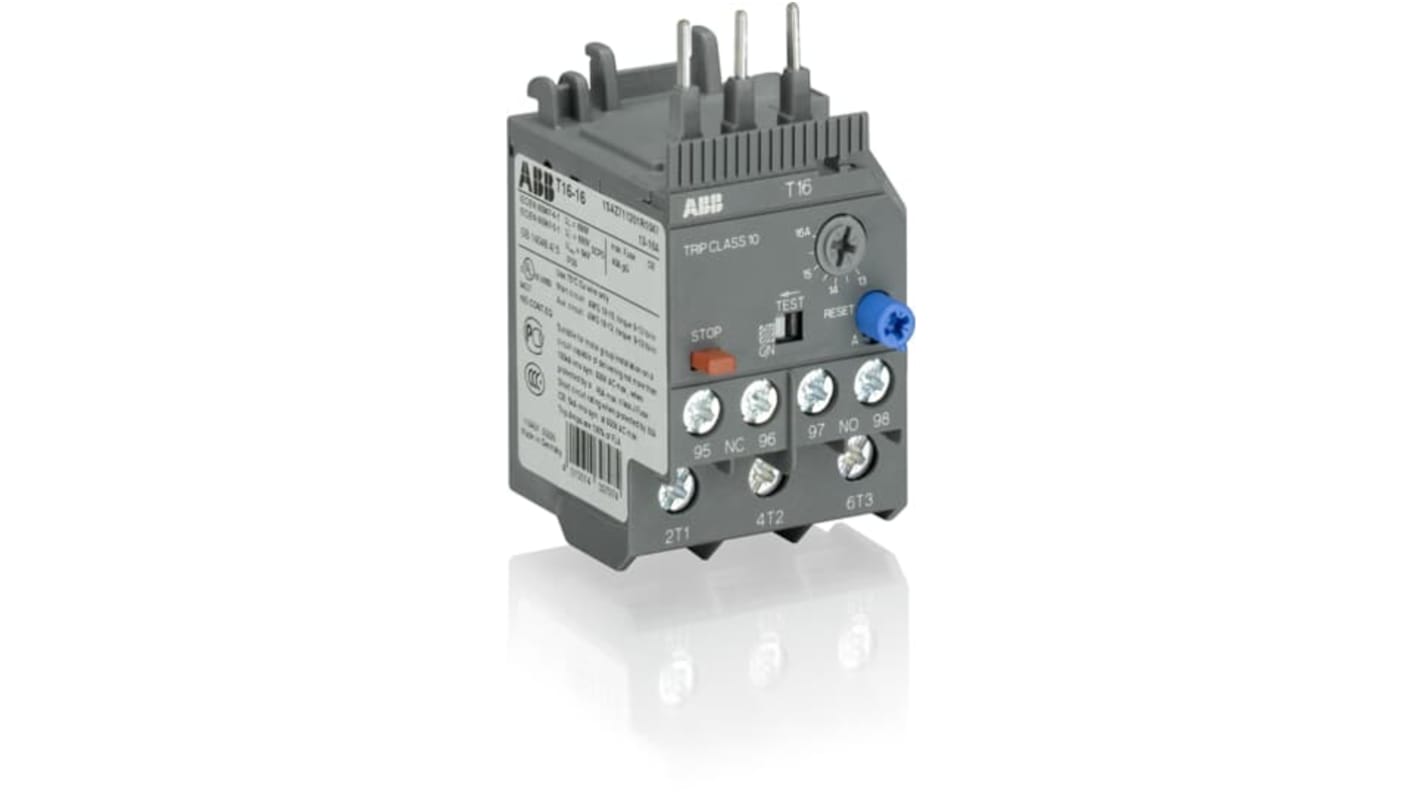

ABB Thermal Overload Relay 1 NO/1 NC, Trip Dial: 10 → 13 A, 10A, 13 A F.L.C, 13A Contact Rating, 600V dc 3
- RS-stocknr.:
- 231-8975
- Fabrikantnummer:
- 1SAZ711201R1045 T16-13
- Fabrikant:
- ABB
Subtotaal (1 doos van 1 eenheid)*
€ 65,85
(excl. BTW)
€ 79,68
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 2 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 15 stuk(s) vanaf 13 november 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Dozen | Per Doos |
|---|---|
| 1 + | € 65,85 |
*prijsindicatie
- RS-stocknr.:
- 231-8975
- Fabrikantnummer:
- 1SAZ711201R1045 T16-13
- Fabrikant:
- ABB
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | ABB | |
| FLC Motor Rating | 10A, 13A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 13A | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Adjustable Current Range | 10 → 13 A | |
| Width | 45mm | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -50°C | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 80°C | |
| Length | 76.7mm | |
| Depth | 53.5mm | |
| Standards/Approvals | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, IEC/EN 60947-5-1, UL 60947-1 | |
| Control Voltage | 600V dc | |
| Alles selecteren | ||
|---|---|---|
Merk ABB | ||
FLC Motor Rating 10A, 13A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 13A | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Adjustable Current Range 10 → 13 A | ||
Width 45mm | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -50°C | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 80°C | ||
Length 76.7mm | ||
Depth 53.5mm | ||
Standards/Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, IEC/EN 60947-5-1, UL 60947-1 | ||
Control Voltage 600V dc | ||
- Land van herkomst:
- DE
The ABB Thermal overload relays are economic electromechanical protection devices for the main circuit. They offer reliable protection for motors in the event of overload or phase failure. The thermal overload relay can make up a compact starting solution together with contactors.
Trip class 10
Adjustable current setting ranges
Overload protection with phase loss sensitivity
Temperature compensation up to +60°C
Automatic or manual reset, sealable
Stop and test function
