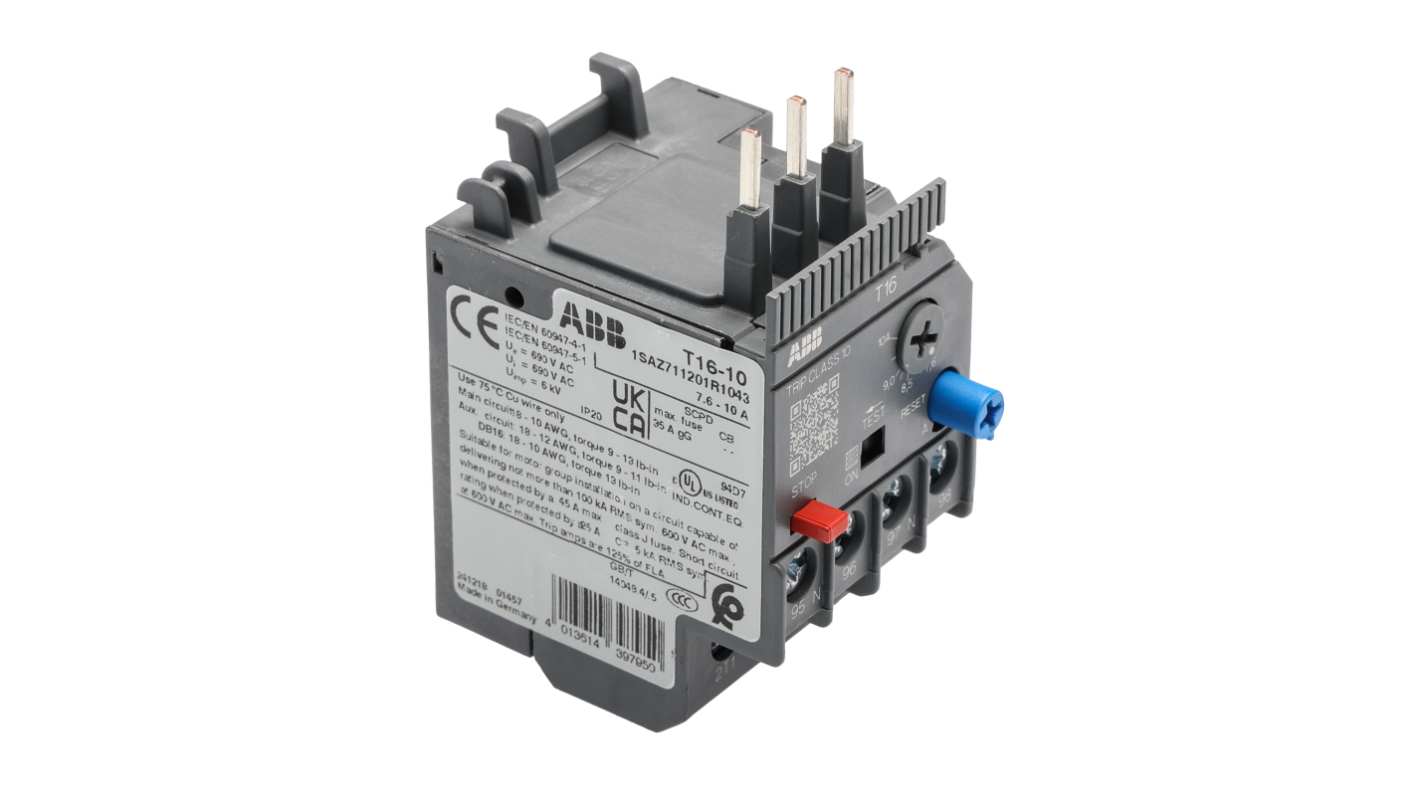

ABB, T16-10 Thermal Overload Relay 1 NO/1 NC, Trip Dial: 7.6 → 10 A, 10A, 7.6 A F.L.C, 10A Contact Rating, 2 W, 600V dc

RS-stocknr.:: 231-8974
Fabrikantnummer:: 1SAZ711201R1043 T16-10
Fabrikant:: ABB

ABB, T16-10 Thermal Overload Relay 1 NO/1 NC, Trip Dial: 7.6 → 10 A, 10A, 7.6 A F.L.C, 10A Contact Rating, 2 W, 600V dc

Bekijk deze categorie

Subtotaal (1 doos van 1 eenheid)*

€ 65,85

(excl. BTW)

€ 79,68

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

31 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Dozen	Per Doos
1 +	€ 65,85

*prijsindicatie

RS-stocknr.:: 231-8974
Fabrikantnummer:: 1SAZ711201R1043 T16-10
Fabrikant:: ABB

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	ABB
	Product Type	Thermal Overload Relay
	FLC Motor Rating	10A, 7.6A
	Relay Contact Current	10A
	Series	T16-10
	Pole and Throw Configuration	3
	Power Rating	2W
	Normal State Configuration	1 NO/1 NC
	Terminal Type	Screw
	Reset Method	Automatic & Manual
	IP Rating	IP20
	Minimum Operating Temperature	-25°C
	Width	45mm
	Adjustable Current Range	7.6 → 10 A
	Number of Auxiliary Contacts	2
	Contact Voltage	600V dc
	Length	53.5mm
	Maximum Operating Temperature	60°C
	Standards/Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
	Depth	53.5mm
	Control Voltage	600V dc
	Supply Voltage	690V

	Alles selecteren
	Merk ABB
	Product Type Thermal Overload Relay
	FLC Motor Rating 10A, 7.6A
	Relay Contact Current 10A
	Series T16-10
	Pole and Throw Configuration 3
	Power Rating 2W
	Normal State Configuration 1 NO/1 NC
	Terminal Type Screw
	Reset Method Automatic & Manual
	IP Rating IP20
	Minimum Operating Temperature -25°C
	Width 45mm
	Adjustable Current Range 7.6 → 10 A
	Number of Auxiliary Contacts 2
	Contact Voltage 600V dc
	Length 53.5mm
	Maximum Operating Temperature 60°C
	Standards/Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
	Depth 53.5mm
	Control Voltage 600V dc
	Supply Voltage 690V

Land van herkomst:: DE

ABB T16-10 Series Thermal Overload Relay, 7.6 to 10A FLC Motor Rating, 10A Contact Current Rating - 1SAZ711201R1043 T16-10

This thermal overload relay is an electromechanical device designed for effective motor protection in industrial applications. It operates within a current rating of 7.6 to 10 A and features a compact design with dimensions of 45mm width, 53.5mm depth, and 53.5mm length. The relay is suitable for use in environments where reliable protection against overload and phase failure is critical.

Features & Benefits

• Automatic or manual reset options for flexibility in operation

• Trip class 10 ensures timely response to overload conditions

• Equipped with 1 NC and 1 NO auxiliary contacts for enhanced functionality

• High voltage operational capability up to 690V for versatility

• Designed to connect directly to mini or block contactors, simplifying installation

• Compact design promotes effective space management in control panels

Applications

• Utilised for motor protection in automated systems

• Applied in industrial machinery to prevent phase loss damage

• Suitable for integration with mini contactors for compact solutions

• Used in environments with varying temperature conditions up to +60°C

What is the temperature range for safe operation?

The device operates effectively within a temperature range of -25°C to +60°C, allowing for use in diverse industrial environments.

What types of connections are compatible with this relay?

It features screw terminal connections, accommodating various conductor sizes for flexible installation options.

How does the trip mechanism function during overload situations?

The relay's trip class 10 mechanism offers reliable activation, providing a prompt response to overload conditions to prevent motor damage.

What design considerations ensure this relay is reliable in industrial settings?

The robust construction, high voltage rating, and effective temperature compensation features enhance its reliability in demanding environments.

What is the impact of the auxiliary contacts in operation?

The auxiliary contacts offer additional signals for system monitoring, enhancing supervision and control in motor applications.
