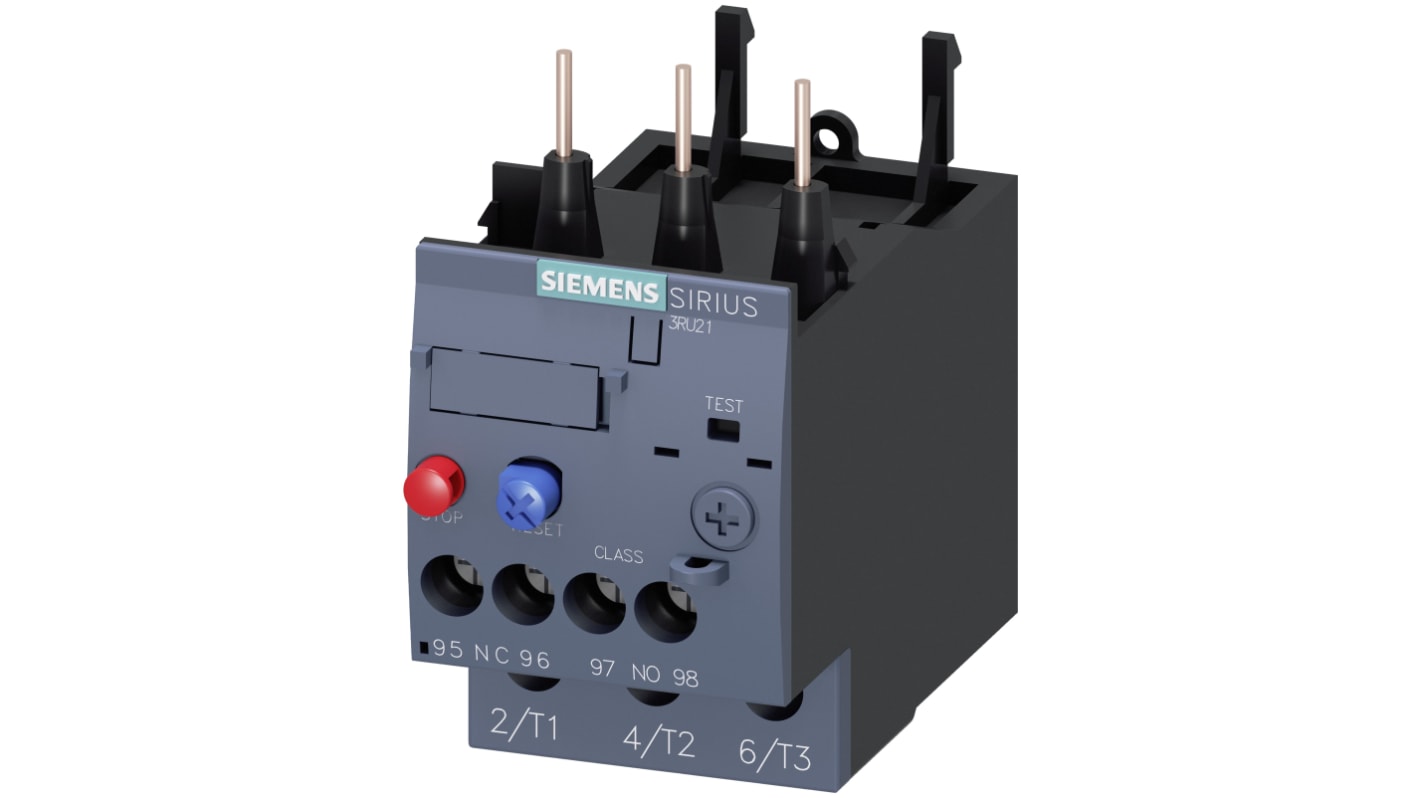

Siemens, 3RU Thermal Overload Relay 1 NO/1 NC, 7 to 10 A F.L.C, 10 A Contact Rating, 7.5 kW 3
- RS-stocknr.:
- 706-1645
- Fabrikantnummer:
- 3RU2126-1JB0
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 79,69
(excl. BTW)
€ 96,42
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- 6 stuk(s) klaar voor verzending
- 10 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 79,69 |
*prijsindicatie
- RS-stocknr.:
- 706-1645
- Fabrikantnummer:
- 3RU2126-1JB0
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| FLC Motor Rating | 7 to 10 A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 10 A | |
| Mount Type | Direct | |
| Series | 3RU | |
| Pole and Throw Configuration | 3 | |
| Power Rating | 7.5kW | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Width | 45 mm | |
| Minimum Operating Temperature | -40°C | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 7 to 10 A | |
| Contact Voltage | 690V ac | |
| Maximum Operating Temperature | 70°C | |
| Length | 87mm | |
| Depth | 73mm | |
| Standards/Approvals | UL Approved, IEC 81346-2, IEC 65029, IEC 61508, IEC 60068-2-27, EAC Approved, CSA Approved, CE Approved, CCC approved | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
FLC Motor Rating 7 to 10 A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 10 A | ||
Mount Type Direct | ||
Series 3RU | ||
Pole and Throw Configuration 3 | ||
Power Rating 7.5kW | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Width 45 mm | ||
Minimum Operating Temperature -40°C | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 7 to 10 A | ||
Contact Voltage 690V ac | ||
Maximum Operating Temperature 70°C | ||
Length 87mm | ||
Depth 73mm | ||
Standards/Approvals UL Approved, IEC 81346-2, IEC 65029, IEC 61508, IEC 60068-2-27, EAC Approved, CSA Approved, CE Approved, CCC approved | ||
- Land van herkomst:
- DE
Overload Relay - 3RU range
Switch position indicator and test function
STOP button
Selector switch for manual/automatic reset
Screw connection or Spring-clamp versions
Impulse voltage resistance 6 kV
Insulation voltage 690V
Surface or DIN-rail stand-alone mounts available, see 706-1699 etc
The 3RU21 thermal overload relays up to 80 A have been designed for current-sensitive protection of loads with normal starting.
These thermal overload relays for use with Sirius Size S0 & S00 Contactors
Note
Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.
Approvals
CE, UL, CSA
