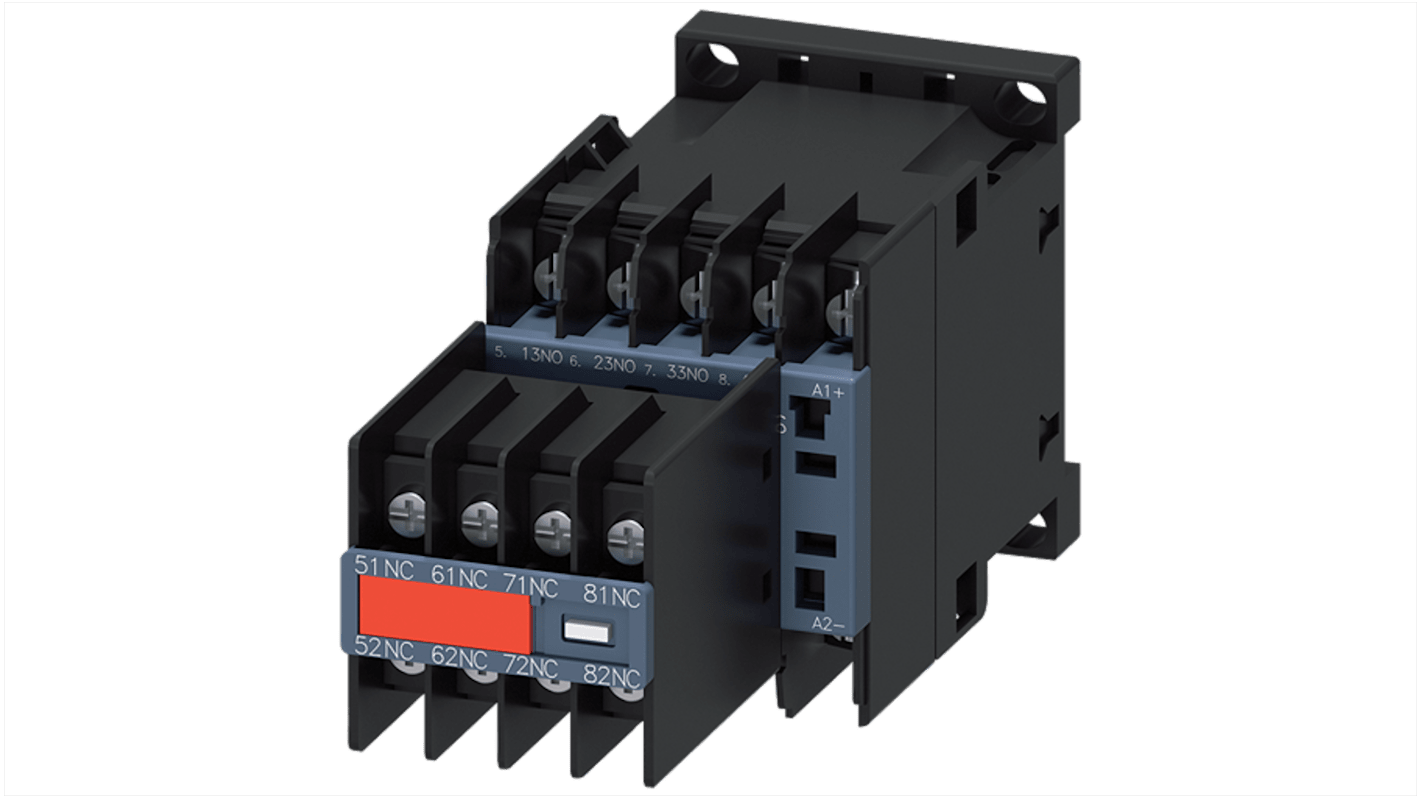

Siemens, 3RH2 Contactor Relay 4 NO/4 NC, 10A Contact Rating, 125V dc
- RS-stocknr.:
- 154-394
- Fabrikantnummer:
- 3RH2244-4BG40
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 102,00
(excl. BTW)
€ 123,42
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 102,00 |
*prijsindicatie
- RS-stocknr.:
- 154-394
- Fabrikantnummer:
- 3RH2244-4BG40
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Contactor Relay | |
| Relay Contact Current | 10A | |
| Series | 3RH2 | |
| Mount Type | Screw and Snap-On | |
| Normal State Configuration | 4 NO/4 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Width | 90mm | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 4 | |
| Maximum Operating Temperature | 60°C | |
| Length | 57.5mm | |
| Standards/Approvals | UKCSA, EAC, CE, CCC, UL | |
| Depth | 73mm | |
| Control Voltage | 125V dc | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Contactor Relay | ||
Relay Contact Current 10A | ||
Series 3RH2 | ||
Mount Type Screw and Snap-On | ||
Normal State Configuration 4 NO/4 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Width 90mm | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 4 | ||
Maximum Operating Temperature 60°C | ||
Length 57.5mm | ||
Standards/Approvals UKCSA, EAC, CE, CCC, UL | ||
Depth 73mm | ||
Control Voltage 125V dc | ||
The Siemens Contactor Relay offers a robust solution for applications requiring reliable control and protection. With advanced engineering and a compact S00 size, it integrates easily into existing systems. It excels in operational and environmental specifications, ensuring long lasting service with minimal maintenance. Operating with a power loss rating of just 4 W, it is energy efficient and supports both AC and DC voltage, enhancing its versatility. The safety driven design meets stringent international standards, ensuring optimal operational reliability and safety.
Compact design for limited spaces
Enhanced shock resistance
Robust insulation voltage capability
High mechanical service life
Optimized environmental footprint
Versatile operational temperatures
Positive driven operation
Multiple contact configurations
