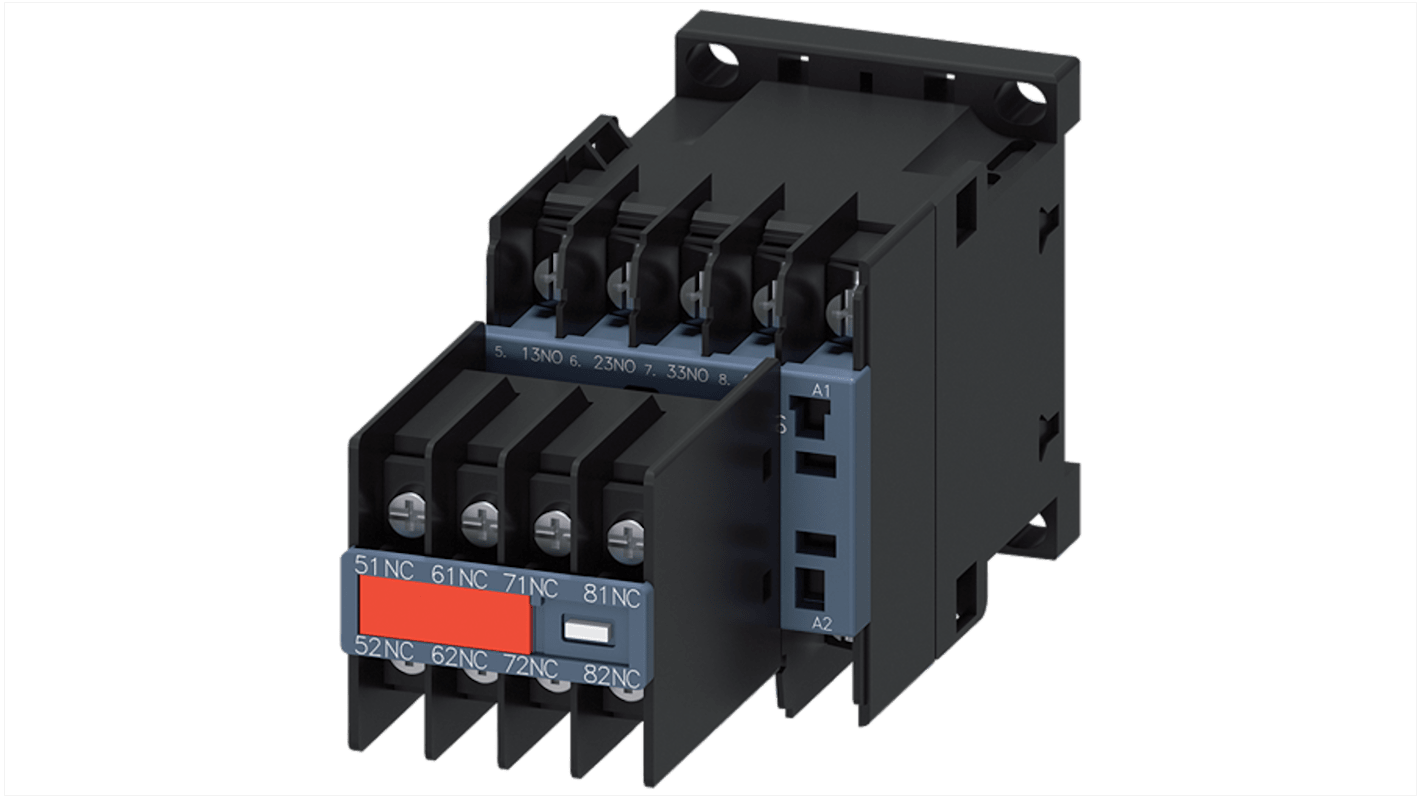

Siemens, 3RH2 Contactor Relay 4 NO/4 NC, 10A Contact Rating, 480V ac
- RS-stocknr.:
- 154-416
- Fabrikantnummer:
- 3RH2244-4AW20
- Fabrikant:
- Siemens
Niet beschikbaar
RS heeft dit product niet meer op voorraad.
- RS-stocknr.:
- 154-416
- Fabrikantnummer:
- 3RH2244-4AW20
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Contactor Relay | |
| Relay Contact Current | 10A | |
| Mount Type | Screw and Snap-On | |
| Series | 3RH2 | |
| Normal State Configuration | 4 NO/4 NC | |
| Terminal Type | Lug Ring Terminal | |
| IP Rating | IP00 | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 8 | |
| Maximum Operating Temperature | 60°C | |
| Length | 57.5mm | |
| Depth | 117mm | |
| Standards/Approvals | CCC, UL, UKCSA, EAC, CE | |
| Control Voltage | 480V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Contactor Relay | ||
Relay Contact Current 10A | ||
Mount Type Screw and Snap-On | ||
Series 3RH2 | ||
Normal State Configuration 4 NO/4 NC | ||
Terminal Type Lug Ring Terminal | ||
IP Rating IP00 | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 8 | ||
Maximum Operating Temperature 60°C | ||
Length 57.5mm | ||
Depth 117mm | ||
Standards/Approvals CCC, UL, UKCSA, EAC, CE | ||
Control Voltage 480V ac | ||
- Land van herkomst:
- DE
The Siemens Contactor relay is designed for optimal performance in various electrical applications. It features four normally open and four normally closed contacts, supporting voltages up to 480 V AC. With a mechanical service life of around 10 million cycles, it offers longevity and reliability in demanding environments. Its eco friendly design and strong environmental footprint management align with both high industrial standards and sustainability goals.
Four NO and four NC contacts for versatile control
Remarkable shock and mechanical endurance
Screw and snap on mounting for easy installation
Operates across a wide temperature range
Significant energy efficiency with low power loss
Complies with stringent safety standards
