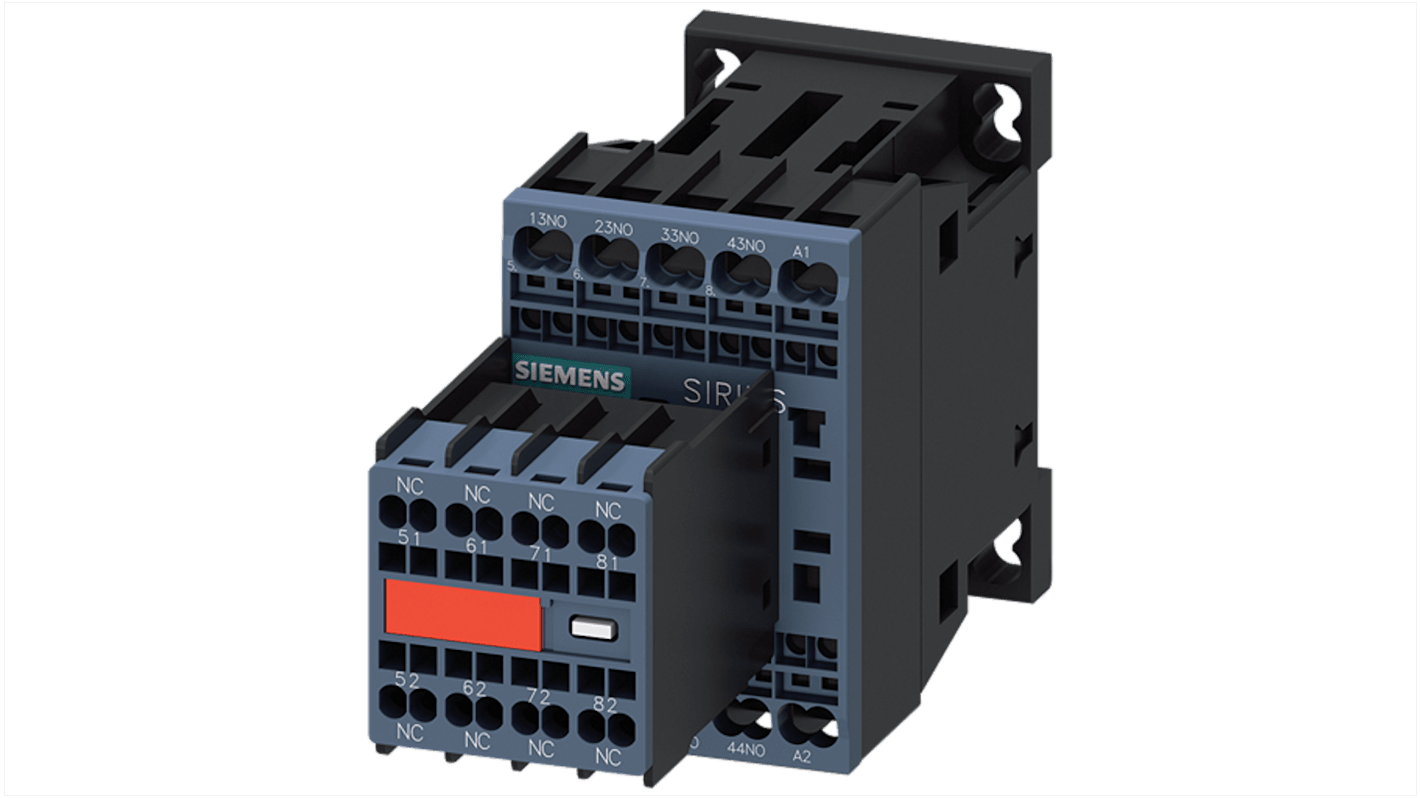

Siemens, 3RH2 Contactor Relay 4 NO/4 NC, 10A Contact Rating, 60V dc
- RS-stocknr.:
- 154-417
- Fabrikantnummer:
- 3RH2244-2BE40
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 93,93
(excl. BTW)
€ 113,66
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 01 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 93,93 |
*prijsindicatie
- RS-stocknr.:
- 154-417
- Fabrikantnummer:
- 3RH2244-2BE40
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Contactor Relay | |
| Relay Contact Current | 10A | |
| Mount Type | Screw and Snap-On | |
| Series | 3RH2 | |
| Normal State Configuration | 4 NO/4 NC | |
| Terminal Type | Spring Loaded | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 8 | |
| Width | 45mm | |
| Maximum Operating Temperature | 60°C | |
| Length | 70mm | |
| Standards/Approvals | EAC, UL, CE, CCC, UKCSA | |
| Depth | 121mm | |
| Control Voltage | 60V dc | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Contactor Relay | ||
Relay Contact Current 10A | ||
Mount Type Screw and Snap-On | ||
Series 3RH2 | ||
Normal State Configuration 4 NO/4 NC | ||
Terminal Type Spring Loaded | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 8 | ||
Width 45mm | ||
Maximum Operating Temperature 60°C | ||
Length 70mm | ||
Standards/Approvals EAC, UL, CE, CCC, UKCSA | ||
Depth 121mm | ||
Control Voltage 60V dc | ||
- Land van herkomst:
- DE
The Siemens Contactor relay is a versatile solution for efficient electrical circuit control. It combines a compact design with reliable switching capabilities for various applications. Supporting high operational currents and boasting a robust mechanical service life, it ensures long-lasting reliability. Easy to install on standard DIN rails and equipped with comprehensive environmental certifications, it meets stringent industrial requirements. Ideal for automation and control systems, it is a trusted choice for professionals seeking optimal functionality and safety in electrical installations.
Compact size for space saving installations
Up to 10 million operating cycles for long service life
Supports a wide range of voltage and current ratings
Easy installation on standard DIN rail
Spring loaded terminals for secure connections
Optimized for AC and DC applications
Meets rigorous environmental and safety standards
High degree of operational flexibility
