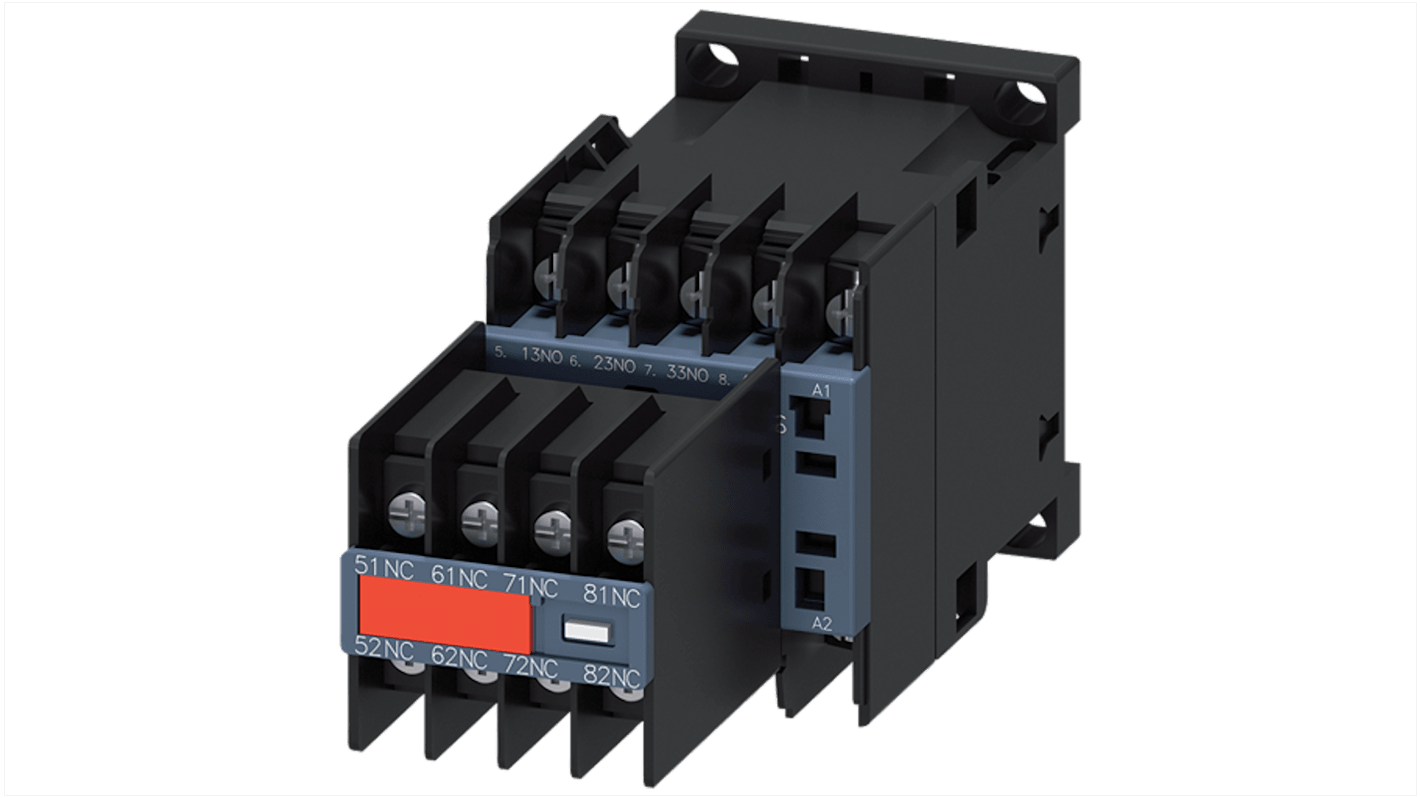

Siemens, 3RH2 Contactor Relay 4 NO/4 NC, 10A Contact Rating, 208V ac
- RS-stocknr.:
- 154-410
- Fabrikantnummer:
- 3RH2244-4AM20
- Fabrikant:
- Siemens
Informatie over voorraden is momenteel niet toegankelijk
- RS-stocknr.:
- 154-410
- Fabrikantnummer:
- 3RH2244-4AM20
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Product Type | Contactor Relay | |
| Relay Contact Current | 10A | |
| Mount Type | Screw and Snap-On | |
| Series | 3RH2 | |
| Normal State Configuration | 4 NO/4 NC | |
| Terminal Type | Lug Ring Terminal | |
| IP Rating | IP00 | |
| Minimum Operating Temperature | -25°C | |
| Width | 45mm | |
| Number of Auxiliary Contacts | 8 | |
| Length | 57.5mm | |
| Maximum Operating Temperature | 60°C | |
| Depth | 117mm | |
| Standards/Approvals | CCC, CE, EAC, UKCSA, UL | |
| Control Voltage | 208V ac | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Product Type Contactor Relay | ||
Relay Contact Current 10A | ||
Mount Type Screw and Snap-On | ||
Series 3RH2 | ||
Normal State Configuration 4 NO/4 NC | ||
Terminal Type Lug Ring Terminal | ||
IP Rating IP00 | ||
Minimum Operating Temperature -25°C | ||
Width 45mm | ||
Number of Auxiliary Contacts 8 | ||
Length 57.5mm | ||
Maximum Operating Temperature 60°C | ||
Depth 117mm | ||
Standards/Approvals CCC, CE, EAC, UKCSA, UL | ||
Control Voltage 208V ac | ||
- Land van herkomst:
- DE
The Siemens Contactor relay is designed to enhance control and safety in diverse industrial applications. Engineered for reliability and efficiency, it supports seamless multi circuit operations. Its compact design is ideal for installations in limited spaces while ensuring optimal performance. With robust insulation and high surge voltage resistance, it protects your systems from electrical disturbances.
10 million cycles service life
Extreme temperature functionality
User-friendly screw and snap-on mounting
Positively driven operation
Auxiliary contacts
High shock and vibration resistance
Various control voltage options
AC and DC modes
Environmental product declaration
